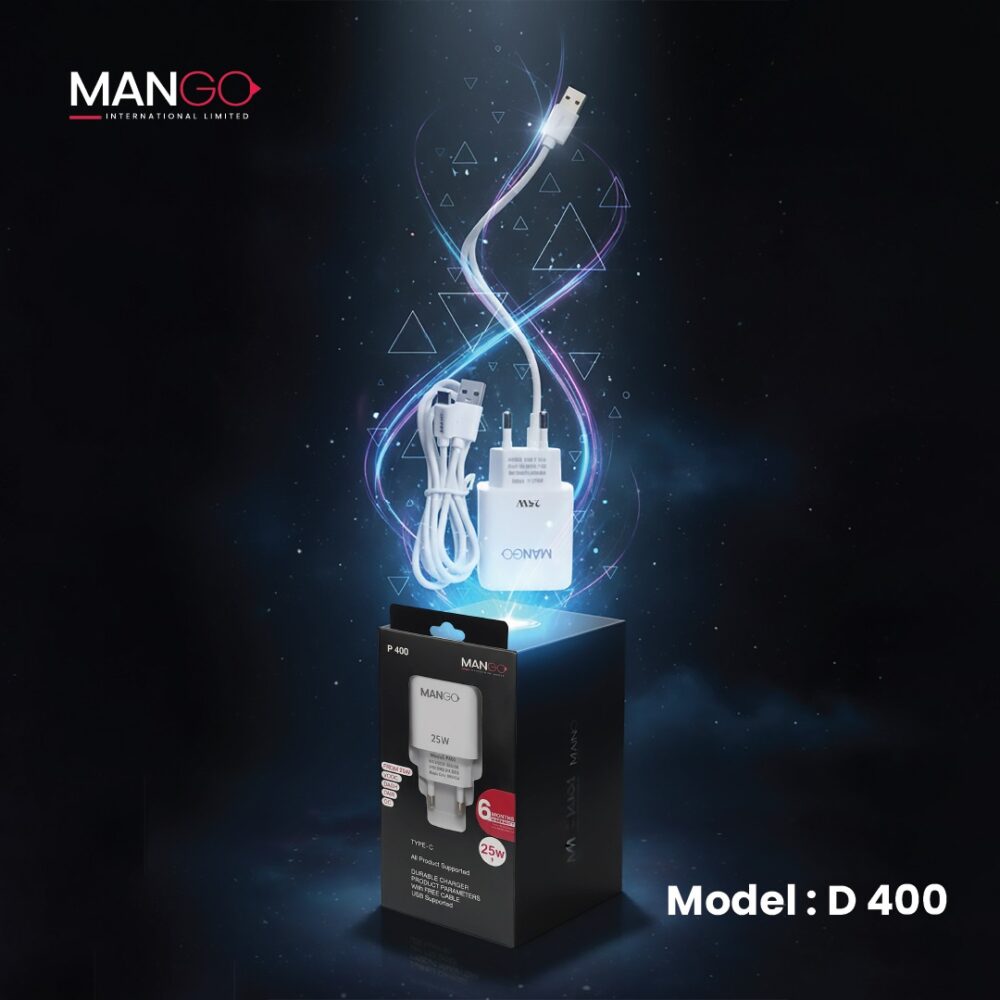

Mango 25W Power Charger P400

Specifications

Feature
Specification

Max Power Output
25 Watts (W)

Charging Standard
USB Power Delivery (PD) 3.0 with PPS (Programmable Power Supply)

Interface
USB Type-C

Input Voltage
100-240 V (Standard worldwide compatibility)

Output Voltage and Current (PDO/PPS)

Fast chargers communicate with the device to determine the safest and fastest charging profile. A 25W charger typically supports the following main output modes:

Mode
Voltage (V)
Current (A)
Max Power (W)
Notes

Standard/Normal Charge (PDO)
5 V
3 A
15 W
Used for non-fast-charging devices or older USB PD standards.

Fast Charge (PDO)
9 V
2.77 A
25 W
A common fixed-voltage mode for quick charging.

PPS (Programmable Power Supply)
3.3 V to 5.9 V (Variable)
3.0 A (Max)
25 W
Dynamically adjusts voltage/current for maximum speed and efficiency with PPS-compatible devices.

PPS (Extended Range)
3.3 V to 11.0 V (Variable)
2.25 A (Max)
25 W
An alternative PPS mode often seen in 25W chargers.

Export to Sheets

Key takeaway: The most important spec for achieving the full 25W speed is support for the USB PD 3.0 standard with the PPS protocol. Your phone must also support this standard to utilize the charger’s full potential.
